Introducing the all-new 2025 Speedir Night Owl Marine Thermal Cameras!
This kit includes everything you need to install a thermal marine night vision on your vessel. There is no need for expensive navigation screens!
Kit comes with:
Night Owl Thermal Night Vision Marine Camera.

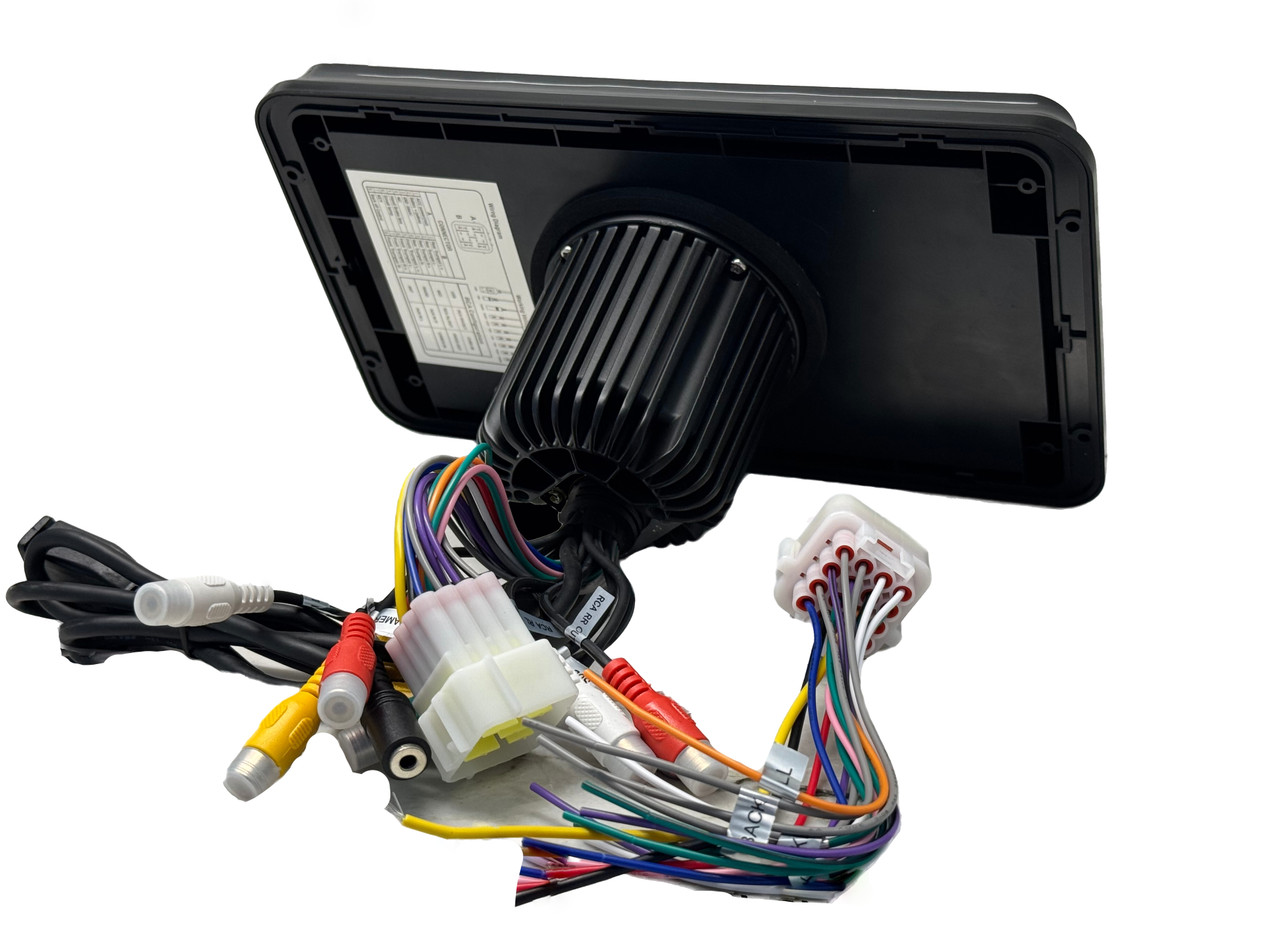

8 Inch Water Proof Touch Screen with Marine Stereo Media Player (IP67.)
Wiring and mounting brackets.
Thermal Camera:
Available in 640x512 or 384x288 resolution
Smaller size, easy to mount
High frame rate of 50hz is perfect for high-speed vessels.
The Night Owl™ Marine HD thermal camera boasts high-definition thermal vision, featuring a 720x480p output resolution.
Screen:
Flush mount, waterproof 8" touch screen (IP67)
Media Player: Bluetooth, FM/AM Radio
Output: 50w x 4 channel
Connectivity: Apple CarPlay™ and Android Auto™
With support for both Apple CarPlay™ and Android Auto™, you can use your favorite navigation apps on a large waterproof screen.
With a media player and powerful sound output, this marine touch screen can be used as your vessel's main stereo. With aux output, it can also connect directly to your existing stereo system.
Speedir thermal marine camera empowers you to see beyond the limitations of visible light, revealing shorelines, vessels, and hazards in challenging conditions like fog. The standout feature of this camera is its remarkable long detection distance, capable of discerning heat sources up to 3000 feet beyond the reach of standard starlight marine night vision cameras.
Speedir thermal marine night vision offers a unique infrared imaging solution for vessels that leverages thermal energy and heat signatures to generate a camera-like display. These heat sensors do not rely on visible light, enabling you to observe objects through obstructions such as fog and darkness. When integrated into vessels, Speedir's thermal night vision systems greatly enhance boating safety by effortlessly detecting hard-to-see hazards on the water.
Thermal Imager Specs:
- Dimension: 1.6" x 1.1" x 1.1" (28mm x 28mm x 40mm)
- Weight: 2.5oz // 65g
- Rated Voltage: DC 12v, 24v (9V-32V)
- Power Consumption: 2w, (6w with heater on)
- Waterproof Rate: IP68
- Heat Detection: 3000ft +
- IR Detector type: Vanadium oxide uncooled infrared focal plane
- Focal Length: 9.1mm @ f 1.0
- Response Band: 8 - 14 μm
- Frame Rate: 50hz
- Video Output Format: CVBS
- Video connector: RCA
- Video output resolution: 720x480 NTSC, 720x576 PAL
- Image Algorithms: 3D noise reduction, AI image enhancement
- Startup time: 3,5s (heater off)
- Heater: Starts automatically below 35.5 °F ( 2°C)
- Operating Temperature: -40~185 °F (-40~85 °C)
Infrared Sensor Resolution |
640X512 |
384x288 |
Field of view |
48.3° X 38.6° |
42° X 32° |
Spatial resolution |
1.86mrad |
1.32mrad |
