Introducing the all-new 2025 Night Owl Thermal Driving Cameras!
Wider view angle!
Higher resolution!
Smaller size!
Now available in 640x512 and 384x288 resolution

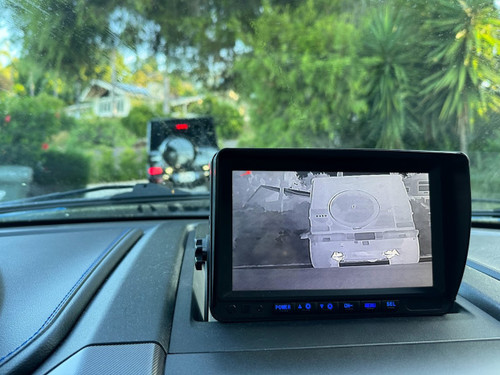

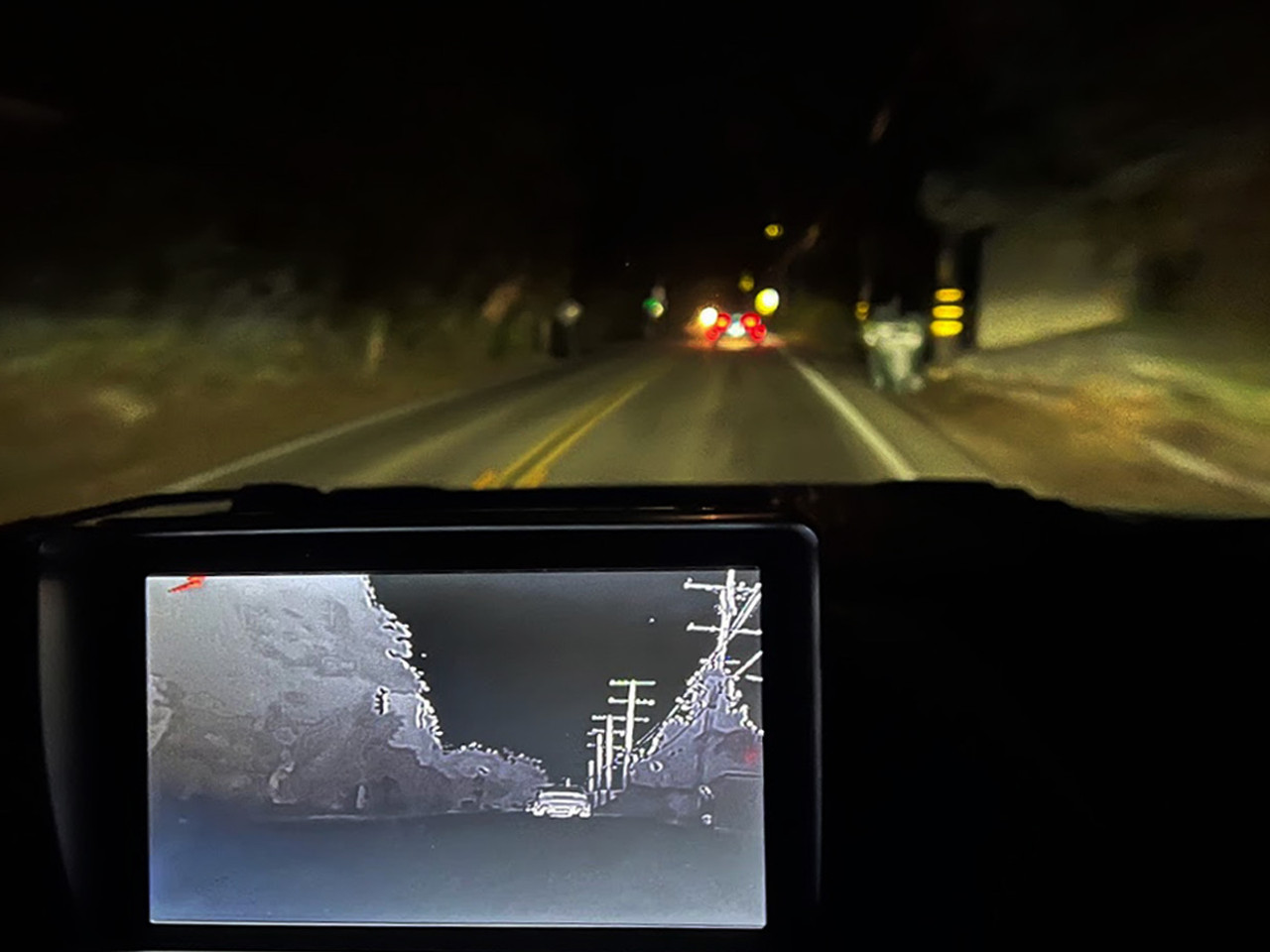

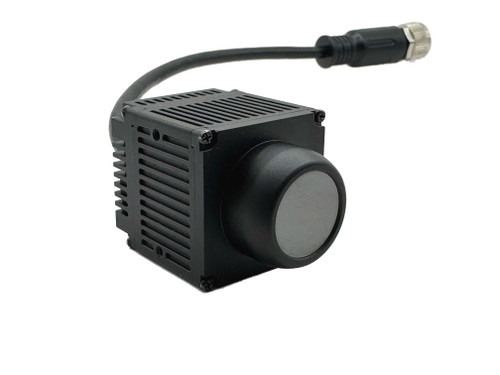

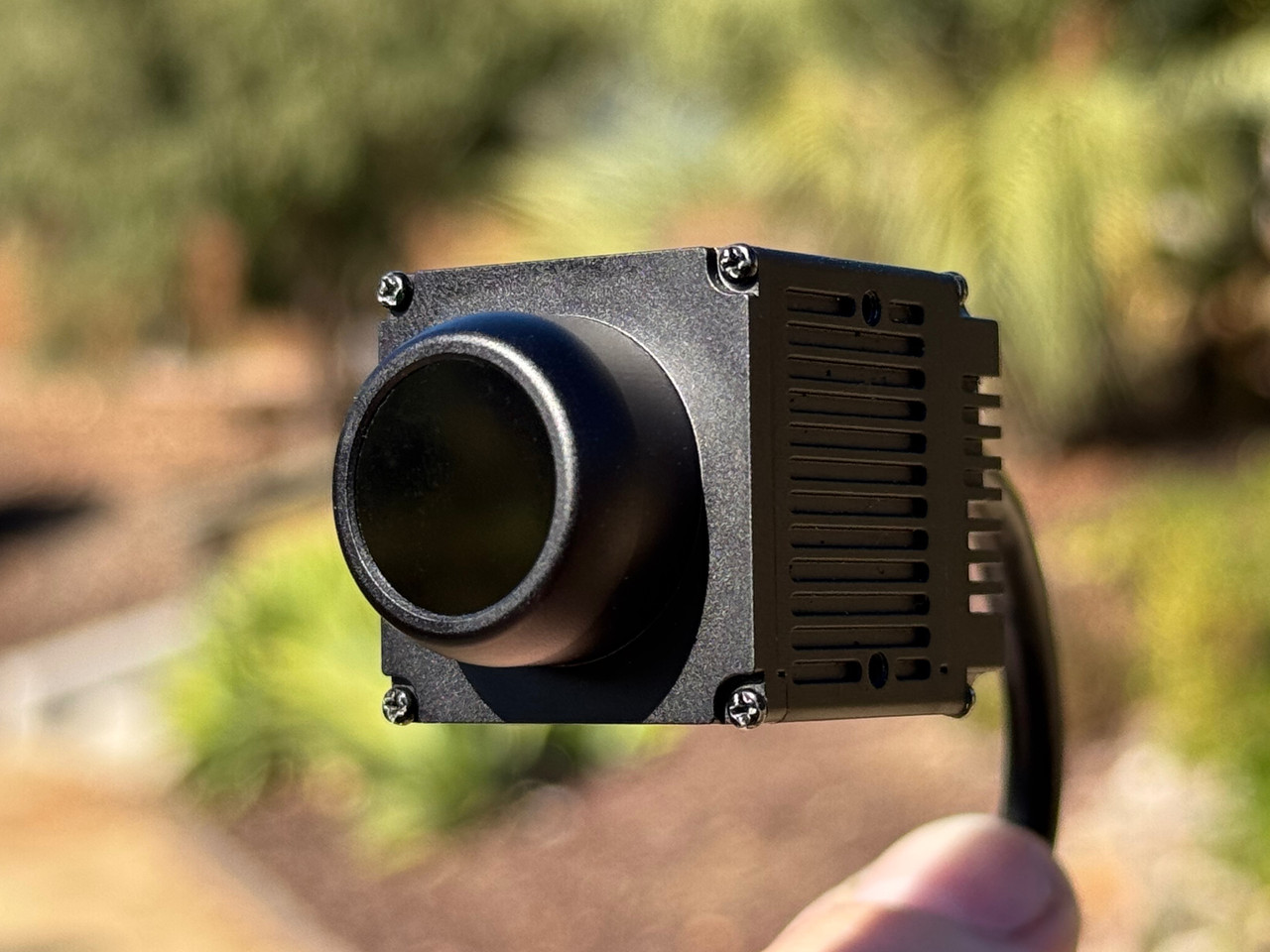

The Night Owl™ HD thermal camera boasts high-definition thermal vision, featuring a 720x480p output resolution. Its versatility is highlighted by standard RCA video connectors that can be effortlessly linked to any screen or video input. This thermal camera finds applications in a wide range of vehicles, including cars, RVs, armored vehicles, off-road trucks, and overland campers.
Speedir thermal driving camera empowers you to see beyond the limitations of visible light, revealing pedestrians, animals, and vehicles even in challenging conditions like fog, smoke, and dust. The standout feature of this camera is its remarkable long detection distance, capable of discerning heat sources up to 3000 feet beyond the reach of standard vehicle headlights.
Speedir thermal night vision offers a unique infrared imaging solution for driving that leverages thermal energy and heat signatures to generate a camera-like display. These heat sensors do not rely on visible light, enabling you to observe objects through obstructions such as dust, darkness, and dense vegetation. When integrated into vehicles, Speedir's systems greatly enhance your driving safety by effortlessly detecting hard-to-see hazards on the road. Whether it's the dead of night or amidst a swirling dust storm, you can now observe animals, pedestrians, and other vehicles with ease using Speedir's cutting-edge technology.
Thermal Vehicle Camera
Speedir’s unique infrared imaging cameras use thermal energy and heat signatures to create a viewable, camera-like display. As heat sensors, these systems require no visible light, allowing you to view subject matter through dust, darkness, and even vegetation. When equipped to vehicles, Speedir’s appliances aid your driving safety by effortlessly perceiving hard-to-see roadway threats. View animals, pedestrians, and other vehicles with ease, in the dead of night or the thick of a dust storm!
Thermal Imager Specs:
- Dimension: 1.6" x 1.1" x 1.1" (28mm x 28mm x 40mm)
- Weight: 2.5oz // 65g
- Rated Voltage: DC 12v, 24v (9V-32V)
- Power Consumption: 2w, (6w with heater on)
- Waterproof Rate: IP68
- Heat Detection: 3000ft +
- IR Detector type: Vanadium oxide uncooled infrared focal plane
- Focal Length: 9.1mm @ f 1.0
- Response Band: 8 - 14 μm
- Frame Rate: 50hz
- Video Output Format: CVBS
- Video connector: RCA
- Video output resolution: 720x480 NTSC, 720x576 PAL
- Image Algorithms: 3D noise reduction, AI image enhancement
- Startup time: 3,5s (heater off)
- Heater: Starts automatically below 35.5 °F ( 2°C)
- Operating Temperature: -40~185 °F (-40~85 °C)
|
Infrared Sensor Resolution |
640X512 |
384x288 |
|
Field of view |
48.3° X 38.6° |
42° X 32° |
|
Spatial resolution |
1.86mrad |
1.32mrad |
Videos:
Wildlife Collision Estimated Costs:
Summary of estimated costs of a wildlife vehicle collusion for a deer, elk, and moose (source: www.fhwa.dot.gov.)
| Description | Deer | Elk | Moose |
| Vehicle repair cost per collision | $1,840 | $3,000 | $4,000 |
| Human injuries per collision | $2,702 | $5,403 | $10,807 |
| Human fatalities per collision | $1,671 | $6,683 | $13,366 |
| Towing, accident attendance and investigation | $125 | $375 | $500 |
| Monetary value animal per collision | $2,000 | $3,000 | $2,000 |
| Carcass removal and disposal per collision | $50 | $100 | $100 |
| Total | $8,388 | $18,561 | $30,773 |
What Is Thermal Imaging?
